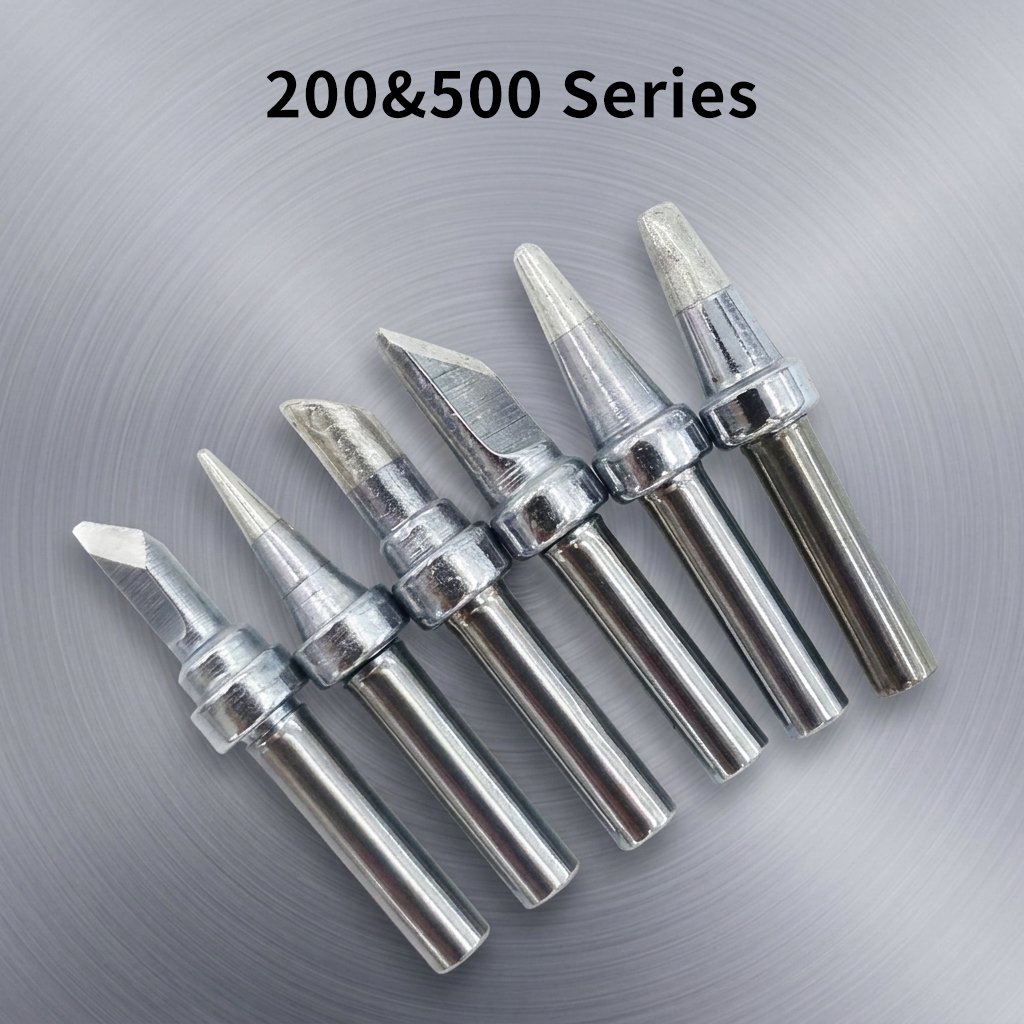

200 & 500 Series High-Frequency Soldering Iron Tips — Industrial Induction Heating Solutions
The 200 and 500 Series High-Frequency Soldering Iron Tips are engineered for high-power induction heating systems, delivering exceptional thermal performance in demanding industrial electronics assembly environments.
Key Specifications
Series: 200 Series and 500 Series (High-Frequency)
Compatible Stations: 203H, 205H, 500 Series induction systems
Heating Technology: High-frequency electromagnetic induction
Operating Temperature: 200°C – 500°C
Thermal Recovery: Less than 5 seconds
Power Range: 150W – 300W (model dependent)
Tip Geometry Options: I, B, K, D, C, H, Knife types
Plating Composition: Iron (Fe) / Nickel (Ni) / Chromium (Cr) multi-layer with ceramic coating options
Performance Advantages
Ultra-Rapid Heat Recovery: High-frequency induction enables instant temperature recovery between joints
High-Power Capacity: Handles large thermal mass components and thick PCB substrates
Extended Lifespan: 40,000 – 60,000 solder joints per tip with proper maintenance
Superior Oxidation Resistance: Advanced plating and optional ceramic coating for extreme conditions
Precision Temperature Control: Compatible with closed-loop temperature monitoring systems
200 Series Models
200-I: Conical fine point for precision SMD work
200-B: Beveled tip for general purpose applications
200-K: Knife-edge for drag soldering
200-D: Large chisel for high-heat transfer
200-C: Horseshoe for specialized components
200-H: Heavy-duty for maximum thermal mass
500 Series Models
500-I: Precision conical for fine-pitch components
500-B: Standard beveled for versatile applications
500-K: Extended knife for large area drag soldering
500-D: Extra-large chisel for power electronics
500-C: Custom horseshoe configurations
500-SB: Special blade for unique applications
Recommended Applications
High-volume automotive electronics manufacturing
Power supply and inverter assembly
LED lighting module production
Industrial control system manufacturing
Large-format PCB assembly
Heavy copper and thick substrate soldering
Military and aerospace electronics
Custom geometries, specialized coatings, and OEM specifications available. Contact engineering support for high-frequency application consultation.
